Woodford mild-climate wall faucets deliver dependable close-connection water service for non-freezing environments. Choose a residential faucet with built-in anti-siphon protection, step up to commercial models with single- or double-check backflow protection and lockable boxes, or specify a specialty hot & cold or heavy-duty close-coupled hydrant. Tap any model to see its features.
Good
Close-connection residential faucets
Anti-siphon protection with an integral check valve and atmospheric vent are all built in, making the Model 101 the right choice to meet code and architectural aesthetics.
- Integral check valve & atmospheric vent
- Anti-siphon protection built in
- Meets code with clean styling
Provide hot and cold water to wash the car, the windows or the dog. Choose a horizontal or vertical configuration with anti-siphon protection, integral check valve and atmospheric vent.
- Hot & cold water service
- Horizontal (122) or vertical (V122) config
- Anti-siphon, check valve & vent
This close-coupled version of the freezeless Model 30 fits within a 2 x 4 stud wall and drains automatically with or without an attached hose. Also available with a composite box, door and fascia.
- Close-coupled, fits a 2x4 stud wall
- Auto-drains with or without a hose
- Optional composite box, door & fascia
Better
Commercial-grade protection & boxed options
Choose no anti-siphon protection, single-check anti-siphon, or double-check backflow protected models. The 24 & 26 are available as individual units or protected inside lockable brass or lightweight modular box models.
- Three protection levels to choose from
- 24 & 26 available individual or boxed
- Lockable brass or modular box options
Never enter a building to shut off the water again. An integral water-supply stop is designed into the faucet head — a slotted valve stem turns with a flat-head screwdriver to stop or resume flow. Protected inside a strong, lightweight (3.3 lbs) modular box with stainless steel door and fascia; a ½-14 FPT inlet projects through the side of the box.
- Integral supply stop in the faucet head
- Lightweight 3.3 lb modular box
- Stainless steel door & fascia
Specialty
Hot & cold and heavy-duty solutions

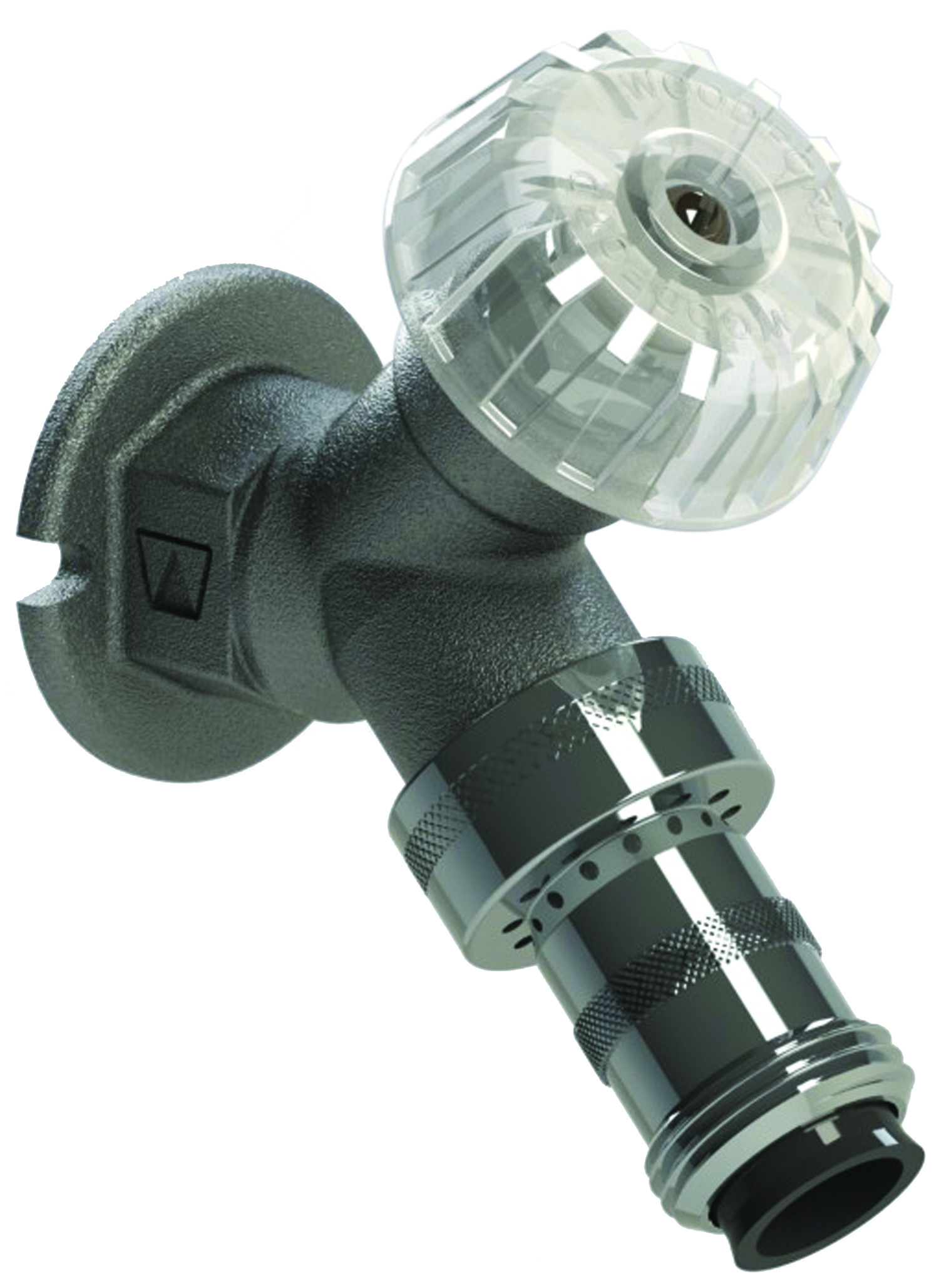

The chrome-plated brass head looks great on any commercial building where hot and cold water service is required. This backflow-protected, close-coupled faucet is available as an exposed head or chrome-plated brass box model.
- Chrome-plated brass head
- Backflow protected, close-coupled
- Exposed (C22CC) or box (B22CC)
Loose tee-key operated rectangular, recessed and flush-mounting chrome-plated brass heads make these the heavy-duty solution. The Model 75 and 79 feature a 3/4" FPT 90° x 360° swivel inlet that fits inside a 4" wall. Choose single-check anti-siphon or double-check backflow preventer models, all available with rectangular or round brass box and door.
- Heavy-duty loose tee-key operation
- 75 & 79 swivel inlet fits a 4" wall
- Single-check or double-check protection
Common Features
- 3/4" male hose thread nozzle
- EPDM packing
- No lead solder on all solder joints
- MAX PRESSURE: 125 p.s.i.
- MAX TEMPERATURE: 120° F
