Woodford freezeless wall faucets deliver year-round outdoor water service regardless of outside temperature. Each faucet drains when the valve is shut off so it won’t rupture from freezing. Step up from a basic freezeless faucet to added anti-siphon protection, then to the patented resetting Anti-Burst Pressure Relief Valve (PRV), and on to automatic-draining models that empty even with a hose left connected.
Automatic Draining
Automatically drains when shut off — even with a hose attached.

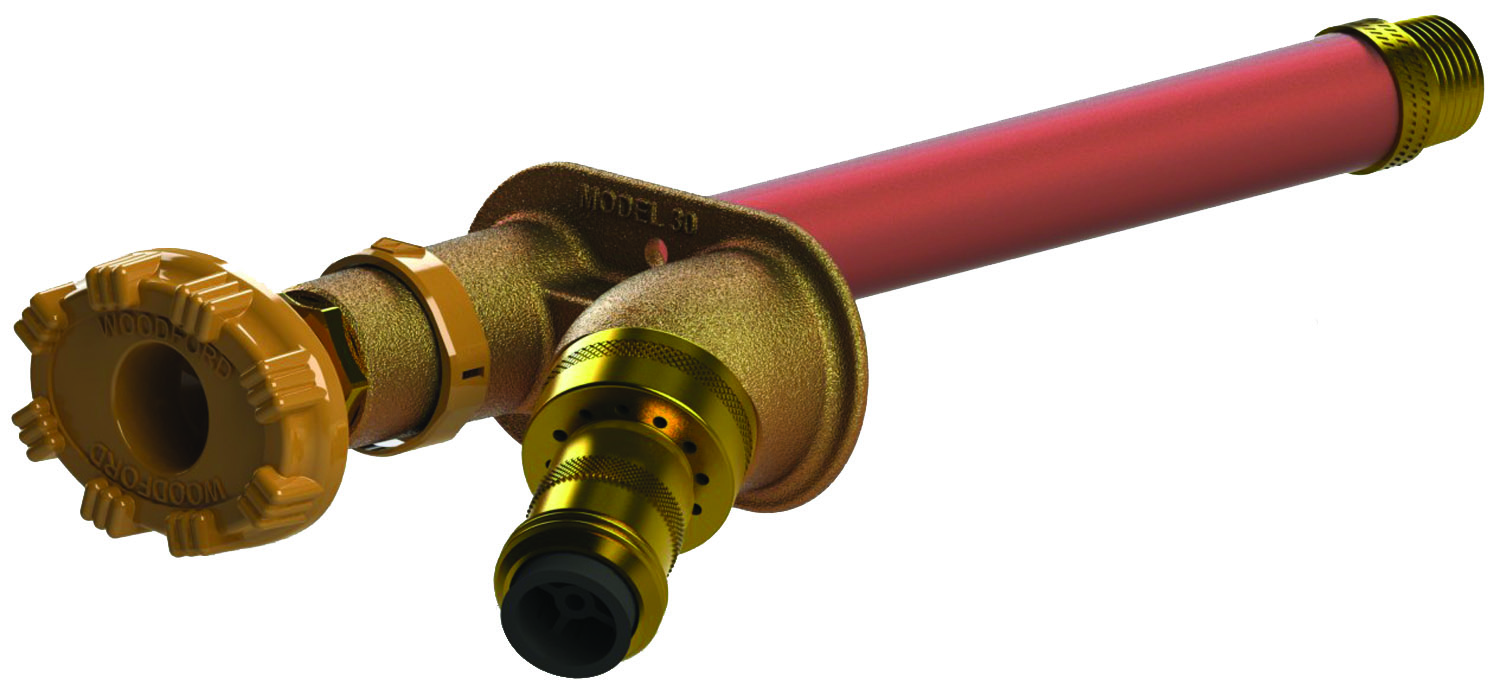

The top of the line. Automatically drains with or without a hose attached, with no sprayback water service. Designed for residential and light commercial use. A Close Coupled (30CC) version fits within a 2×4 stud wall for non-freeze areas. Add the MB30 Modular Box — a high-impact composite box, door and fascia that recesses the Model 30 in the wall for a durable, secure, paintable finish (thumb-latch MB30BX or key-lock MB30BX-K; faucet sold separately).
- Drains with or without hose
- No sprayback
- 30CC close-coupled option
- MB30 Modular Box available
Automatic-draining freezeless faucet that drains as the handle is shut off even with a hose attached, with no sprayback. Includes a 50-series vacuum breaker for backflow protection.
- Drains with hose attached
- No sprayback
- 50-series vacuum breaker
- Freezeless design
Automatic-draining freezeless faucet — it drains as the handle is shut off even when a hose stays attached. Includes a 34-series vacuum breaker for anti-siphon protection.
- Drains with hose attached
- 34-series vacuum breaker
- Freezeless design
Backflow Protected + PRV
Anti-siphon and Anti-Burst PRV backflow protection.
Full protection in one faucet: integral anti-siphon backflow protection combined with the patented resetting Anti-Burst Pressure Relief Valve. The complete freezeless solution, even if a hose is left connected.
- Anti-siphon backflow protection
- Anti-Burst PRV protection
- Protects if hose left on
Freezeless faucet with the patented resetting Anti-Burst Pressure Relief Valve. The faucet will still freeze but won’t rupture, even if a hose is inadvertently left connected. No anti-siphon protection.
- Anti-Burst PRV protection
- Freezeless design
- Protects if hose left on
Freezeless Protection
A dependable freezeless faucet for year-round outdoor water.
The essential freezeless wall faucet for year-round residential irrigation. Drains automatically as the handle is shut off and the hose is removed. Offers no anti-siphon or backflow protection.
- Freezeless design
- Drains when hose removed
- Wall thickness 4"–24"
Freezeless faucet with integral backflow protection rated to 125 psi of backpressure, so no add-on vacuum breaker is required. Round, powder-coated die-cast aluminum handle.
- Integral anti-siphon protection
- No add-on vacuum breaker needed
- Freezeless design
Specialty Items
Purpose-built for hot & cold and irrigation supply.
Year-round hot and cold water outside. Separate hot and cold inlet tubes and handles allow manual temperature control with cross-contamination protection. Includes integral backflow protection and patented pressure relief valves. Available in horizontal or vertical (V22) configuration.
- Hot water service
- Cold water service
- Anti-siphon + dual PRVs
- Horizontal or vertical
A freezeless lawn sprinkler supply wall hydrant — the dedicated supply valve for lawn and garden sprinkler systems, water features and decorative ponds. Key-operated with a removable drain plug, it gives outside access for start-up, winterizing and servicing without entering the home. Pairs with any RP backflow preventer, double check or pressure vacuum breaker.
- Supply valve for irrigation systems
- Key-operated, removable drain plug
- Outside access for winterizing
Common Features
- 3/4" male hose thread nozzle
- No lead solder on all solder joints
- Molded nitrile valve, suitable for hot water
- Wall thickness 4"–24" in 2" increments
- Maximum pressure: 125 psi
