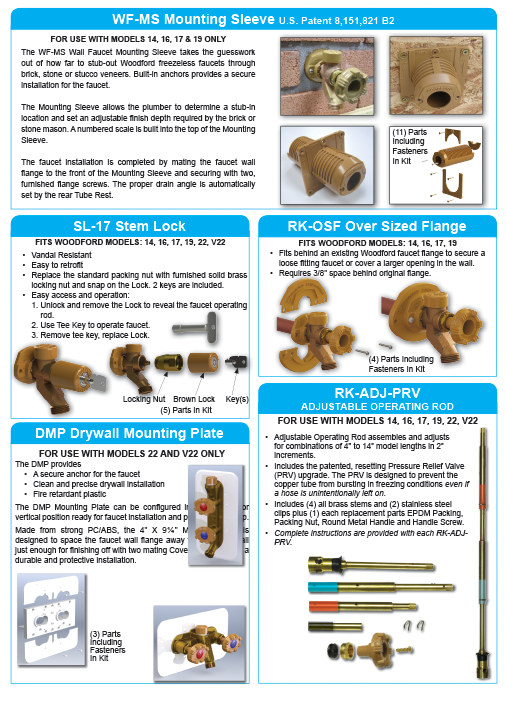

Residential Wall Faucet Accessories

Takes the guesswork out of the stub-out.

The 6" Mounting Sleeve lets the plumber set the stub-in location and the adjustable finish depth required by the brick or stone mason, then anchors the faucet securely through brick, stone or stucco veneers. A numbered 1/4" scale is built into the top, and the rear Tube Rest automatically sets the proper drain angle.

• Built-in anchors for a secure install
• Numbered depth scale in 1/4" increments
• Auto-sets the drain angle via rear Tube Rest
• 11 parts including fasteners in kit

Fits models: 14, 16, 17 & 19 only

View Details

Clean, precise drywall installation.

Made from strong, fire-retardant PC/ABS, the DMP provides a secure anchor for the faucet and spaces the wall flange away from 5/8" drywall — just enough to finish off with two mating cover plates for a durable, protective installation. Configures horizontally or vertically, ready for faucet installation and plumbing hook-up.

• Secure anchor for the faucet
• Horizontal or vertical configuration
• Fire-retardant PC/ABS construction
• 3 parts plus fasteners in kit

Use with: Model 22 or V22 and 122 or V122 (mild climate)

View Details

Easy to retrofit — keyed access.

Replace the standard packing nut with the furnished brass locking nut and snap on the lock — two keys are included. To operate: unlock and remove the lock to reveal the faucet operating rod, use the tee key to run the faucet, then remove the tee key and replace the lock.

• Brass locking nut replaces the packing nut
• Snap-on lock with 2 keys included
• Quick, tool-free access and operation

Fits models: 14, 16, 17, 19, 22 & V22

View Details

Secure a loose faucet or cover a larger opening.

Fits behind an existing Woodford faucet flange to secure a loose-fitting faucet or cover a larger opening in the wall for a finished appearance. Requires 3/8" of space behind the original flange.

• Secures loose-fitting faucets
• Covers oversized wall openings
• Requires 3/8" behind original flange
• 4 parts including fasteners in kit

Fits models: 14, 16, 17, 19 & 101

View Details

Converts faucet to Anti-Burst — piston activates at approx. 350 psi.

The adjustable operating rod assembles and adjusts to upgrade faucets with wall thicknesses of 4" to 14", in 2" increments, and includes the patented, resetting Pressure Relief Valve (PRV) upgrade. The PRV is designed to prevent the copper tube from bursting in freezing conditions — even if a hose is unintentionally left on. Complete instructions are provided with each kit.

• Upgrades faucets for 4"–14" walls, adjustable in 2" increments
• Patented resetting Anti-Burst PRV upgrade
• Protects even with a hose left connected
• 4 all-brass stems & 2 stainless clips
• Replacement EPDM packing, packing nut, handle & screw

Fits models: 14, 16, 17, 19, 22 & V22

View Details
