Residential Freezeless Wall Faucets

Click for More information

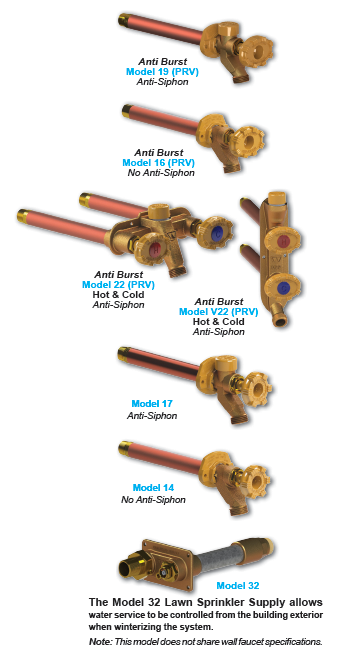

Woodford Residential Wall Faucets

Woodford freezeless wall faucets are designed to provide year-round outdoor water service regardless of outside temperature

All faucets are suited for use on homes, service stations, churches, motels, drive-in restaurants, etc. Four models include the patented, resetting, Anti-Burst Pressure Relief Valve (PRV)*. Wall thickness: 4" - 24" in 2" increments

  • 3/4" male hose thread nozzle
  • Stainless steel seat - eliminates wire draw
  • EPDM Packing
  • Full circle operating threads on valve body and retainer
  • No lead solder on all solder joints
  • Standard “O” size beveled seat washer
  • Powder coated die cast aluminum wheel handles
  • Tee key option available
  • Adjustable polycarbonate wall flange (N/A - 22/V22)
  • Adjustable packing nut
  • Red brass head casting
  • 5/16" solid brass valve stem
  • Check valve on valve stem
  • Frost-Free
  • MAX PRESSURE - 125 p.s.i.
  • MAX TEMPERATURE - 120° F
